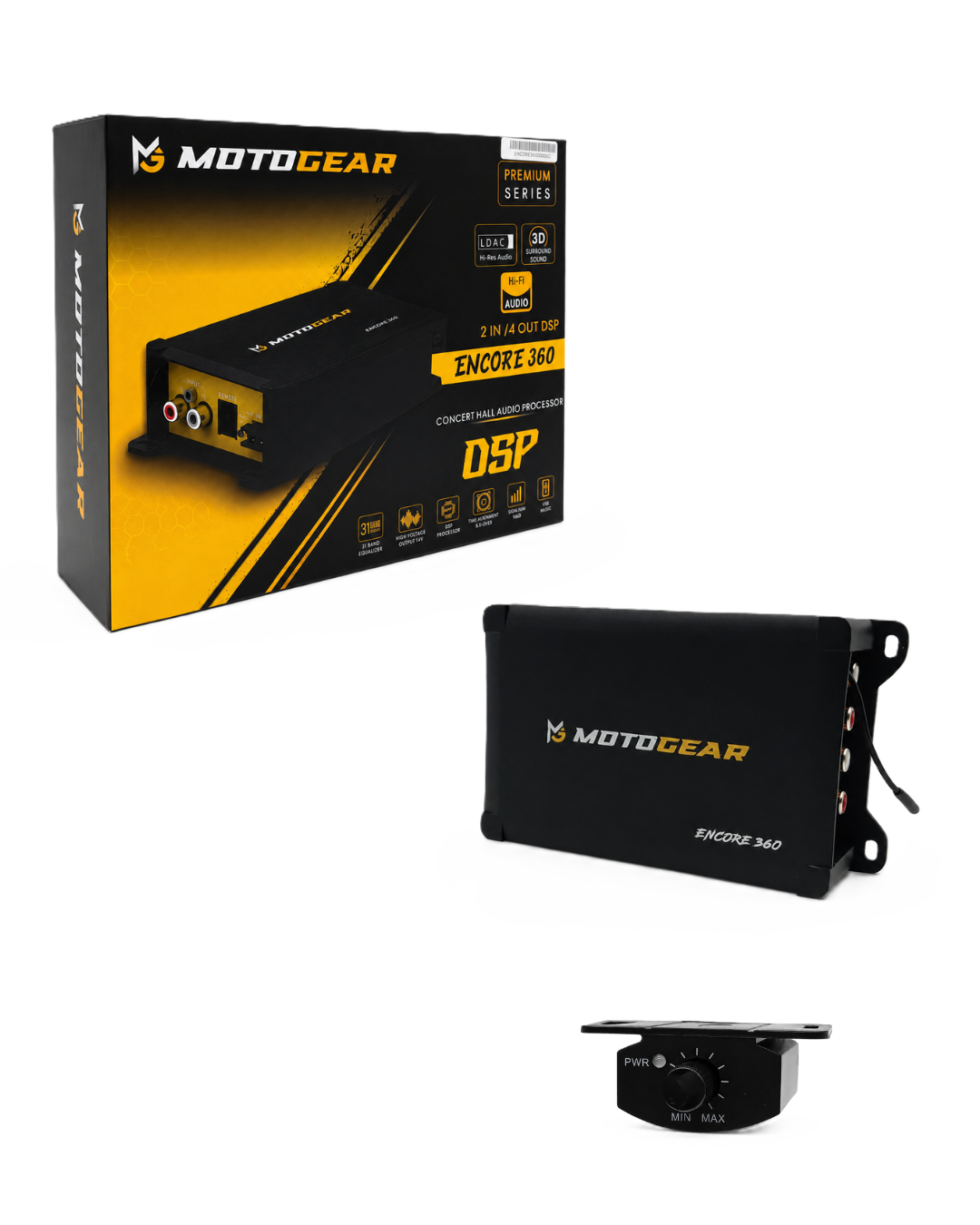

MOTOGEAR ENCORE 360 2 IN 4 OUT DSP with LDAC Bluetooth (Pack of 1)

Upgrade your car audio system with the MOTOGEAR ENCORE 360 DSP, designed to deliver clean, detailed and immersive sound with advanced audio processing. Featuring 2-channel input and 4-channel output, it provides flexible connectivity for a wide range of car audio setups. LDAC Bluetooth and USB audio support enable high-quality digital playback, while the built-in DSP processing helps optimize your system’s overall sound performance. With 31-band EQ, time alignment and 3D surround sound, ENCORE 360 gives you greater control over your listening experience. Its low-noise audio design and high SNR help maintain clear signal quality. Designed for 9–16V DC operation, it is compact and suitable for professional car audio upgrades.

• Input: 2-Channel Low-Level Audio Input
• Output: 4-Channel Low-Level Output
• Maximum Input Voltage: 1.6 Vrms
• Maximum Output Voltage: 1.6 Vrms
• DSP Processor: JL7034 / 320 MHz
• Op-Amp: Imported Japanese JRC4580 Low-Noise OP
• Sampling Rate: 96 kHz / 24-Bit
• Bluetooth: LDAC Bluetooth Audio Support
• Signal-to-Noise Ratio (RCA): 98 dB
• Total Harmonic Distortion (THD+N): 0.02%
• Noise Floor: -90 dB
• Channel Separation / Crosstalk: 89 dB
• Frequency Response: 20 Hz – 20 kHz
• Operating Voltage: DC 9–16V
• Operating Current: 100 mA
• Dimensions: 149 × 85 × 40 mm
• Output Impedance: 51
• Audio Features: 31-Band EQ, Time Alignment, 3D Surround Sound
• Warranty: 12 Months
